Variational_AutoEncoders

import pickle
import datasets

# windows 本地下载并保存
# minist = load_dataset("mnist")
# with open("minist_dataset.pkl", "wb") as f:
#     pickle.dump(minist, f)

mnist = datasets.load_dataset("./mnist/")

mnist

DatasetDict({
train: Dataset({
features: [‘image’, ‘label’],
num_rows: 60000
})
test: Dataset({
features: [‘image’, ‘label’],
num_rows: 10000
})
})

from genaibook.core import show_images
show_images(mnist["train"]["image"][:4])

import matplotlib as mpl

mpl.rcParams["image.cmap"] = "gray_r"
show_images(mnist["train"]["image"][:4])

from torchvision import transforms


def mnist_to_tensor(samples):
    t = transforms.ToTensor()
    samples["image"] = [t(image) for image in samples["image"]]
    return samples

mnist = mnist.with_transform(mnist_to_tensor)
mnist["train"] = mnist["train"].shuffle(seed=1337)

x = mnist["train"]["image"][0]
x.min(), x.max()

show_images(mnist["train"]["image"][0])

from torch.utils.data import DataLoader

bs = 64
train_dataloader = DataLoader(mnist["train"]["image"],
    batch_size=bs)

1 | AutoEncoders

1.1 | Encoder model

from torch import nn


def conv_block(in_channels, out_channels, kernal_size=4,
               stride=2, padding=1):
    return nn.Sequential(
        nn.Conv2d(
            in_channels,
            out_channels,
            kernel_size=kernal_size,
            stride=stride,
            padding=padding,
        ),
        nn.BatchNorm2d(out_channels),
        nn.ReLU(),
    )

class Encoder(nn.Module):
    def __init__(self, in_channels):
        super().__init__()
        self.conv1 = conv_block(in_channels, 128)
        self.conv2 = conv_block(128, 256)
        self.conv3 = conv_block(256, 512)
        self.conv4 = conv_block(512, 1024)
        self.linear = nn.Linear(1024, 16)

    def forward(self, x):
        x = self.conv1(x)
        x = self.conv2(x)
        x = self.conv3(x)
        x = self.conv4(x)
        x = self.linear(x.flatten(start_dim=1))
        return x


mnist["train"]["image"][0].shape

torch.Size([1, 28, 28])

in_channels = 1
x = mnist["train"]["image"][0][None, :]
encoder = Encoder(in_channels).eval()

encoded = encoder(x)
encoded.shape

torch.Size([1, 16])

encoded

tensor([[-0.0048, -0.0199, 0.0006, 0.0168, 0.0034, -0.0012, -0.0046, 0.0108,
-0.0039, -0.0243, 0.0268, -0.0117, -0.0271, -0.0337, -0.0243, -0.0285]],
grad_fn=)

batch = next(iter(train_dataloader))
encoded = Encoder(in_channels=1)(batch)
batch.shape, encoded.shape

(torch.Size([64, 1, 28, 28]), torch.Size([64, 16]))

1.2 | Decoder model

def conv_transpose_block(
    in_channels,
    out_channels,
    kernel_size=3,
    stride=2,
    padding=1,
    output_padding=0,
    with_act=True,
):
    modules = [
        nn.ConvTranspose2d(
            in_channels,
            out_channels,
            kernel_size=kernel_size,
            stride=stride,
            padding=padding,
            output_padding=output_padding,
        ),
    ]
    if with_act:
        modules.append(nn.BatchNorm2d(out_channels))
        modules.append(nn.ReLU())
    return nn.Sequential(*modules)


class Decoder(nn.Module):
    def __init__(self, out_channels):
        super().__init__()
        self.linear = nn.Linear(
            16, 1024 * 4 * 4
        )
        self.t_conv1 = conv_transpose_block(1024, 512)
        self.t_conv2 = conv_transpose_block(512, 256,
                                            output_padding=1)
        self.t_conv3 = conv_transpose_block(256, out_channels,
                                            output_padding=1)

    def forward(self, x):
        bs = x.shape[0]
        x = self.linear(x)
        x = x.reshape((bs, 1024, 4, 4))
        x = self.t_conv1(x)
        x = self.t_conv2(x)
        x = self.t_conv3(x)
        return x

decoded_batch = Decoder(x.shape[0])(encoded)
decoded_batch.shape

torch.Size([64, 1, 28, 28])

1.3 | AutoEncoder training

class AutoEncoder(nn.Module):
    def __init__(self, in_channels):
        super().__init__()
        self.encoder = Encoder(in_channels)
        self.decoder = Decoder(in_channels)

    def encode(self, x):
        return self.encoder(x)

    def decode(self, x):
        return self.decoder(x)

    def forward(self, x):
        return self.decode(self.encode(x))

model = AutoEncoder(1)

import torchsummary

torchsummary.summary(model, input_size=(1, 28, 28), device="cpu")

-—————————————————————
Layer (type) Output Shape Param #
================================================================
Conv2d-1 [-1, 128, 14, 14] 2,176
BatchNorm2d-2 [-1, 128, 14, 14] 256
ReLU-3 [-1, 128, 14, 14] 0
Conv2d-4 [-1, 256, 7, 7] 524,544
BatchNorm2d-5 [-1, 256, 7, 7] 512
ReLU-6 [-1, 256, 7, 7] 0
Conv2d-7 [-1, 512, 3, 3] 2,097,664
BatchNorm2d-8 [-1, 512, 3, 3] 1,024
ReLU-9 [-1, 512, 3, 3] 0
Conv2d-10 [-1, 1024, 1, 1] 8,389,632
BatchNorm2d-11 [-1, 1024, 1, 1] 2,048
ReLU-12 [-1, 1024, 1, 1] 0
Linear-13 [-1, 16] 16,400
Encoder-14 [-1, 16] 0
Linear-15 [-1, 16384] 278,528
ConvTranspose2d-16 [-1, 512, 7, 7] 4,719,104
BatchNorm2d-17 [-1, 512, 7, 7] 1,024
ReLU-18 [-1, 512, 7, 7] 0
ConvTranspose2d-19 [-1, 256, 14, 14] 1,179,904
BatchNorm2d-20 [-1, 256, 14, 14] 512
ReLU-21 [-1, 256, 14, 14] 0
ConvTranspose2d-22 [-1, 1, 28, 28] 2,305
BatchNorm2d-23 [-1, 1, 28, 28] 2
ReLU-24 [-1, 1, 28, 28] 0
Decoder-25 [-1, 1, 28, 28] 0
================================================================
Total params: 17,215,635
Trainable params: 17,215,635
Non-trainable params: 0

---

Input size (MB): 0.00
Forward/backward pass size (MB): 2.86
Params size (MB): 65.67
Estimated Total Size (MB): 68.54

---

import torch
from matplotlib import pyplot as plt
from torch.nn import functional as F
from tqdm.notebook import tqdm, trange
from genaibook.core import get_device


num_epochs = 10
lr = 1e-4

device = get_device()
model = model.to(device)
optimizer = torch.optim.AdamW(model.parameters(), lr=lr,
    eps=1e-5)

losses = []
for _ in (process := trange(num_epochs, desc="Training")):
    for _, batch in (
        inner := tqdm(enumerate(train_dataloader),
                      total=len(train_dataloader))
    ):
        batch = batch.to(device)
        preds = model(batch)
        loss = F.mse_loss(preds, batch)
        inner.set_postfix(loss=f"{loss.cpu().item():.3f}")
        losses.append(loss.item())
        loss.backward()
        optimizer.step()
        optimizer.zero_grad()
    process.set_postfix(loss=f"{loss.cpu().item():.3f}", lr=f"{lr:.0e}")

Training: 0%| | 0/10 [00:00<?, ?it/s]

plt.plot(losses)
plt.xlabel("Step")
plt.ylabel("Loss")
plt.title("AutoEncoder - Training Loss Curve")
plt.show()

eval_bs = 16
eval_dataloader = DataLoader(mnist["test"]["image"], batch_size=eval_bs)

model.eval()
with torch.inference_mode():
    # 只需要获取数据集的第一个批次，而不是遍历整个数据集
    eval_batch = next(iter(eval_dataloader))
    predicted = model(eval_batch.to(device)).cpu()
    batch_vs_preds = torch.cat((eval_batch, predicted))
    show_images(batch_vs_preds, imsize=1, nrows=2)

class Encoder(nn.Module):
    def __init__(self, in_channels, latent_dims):
        super().__init__()
        self.conv_layers = nn.Sequential(
            conv_block(in_channels, 128),
            conv_block(128, 256),
            conv_block(256, 512),
            conv_block(512, 1024),
        )
        self.linear = nn.Linear(1024, latent_dims)

    def forward(self, x):
        bs = x.shape[0]
        x = self.conv_layers(x)
        x = self.linear(x.reshape(bs, -1))
        return x

class Decoder(nn.Module):
    def __init__(self, out_channels, latent_dims):
        super().__init__()
        self.linear = nn.Linear(latent_dims, 1024 * 4 * 4)
        self.t_conv_layers = nn.Sequential(
            conv_transpose_block(1024, 512),
            conv_transpose_block(512, 256, output_padding=1),
            conv_transpose_block(
                256, out_channels, output_padding=1, with_act=False
            )
        )
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        bs = x.shape[0]
        x = self.linear(x)
        x = x.reshape((bs, 1024, 4, 4))
        x = self.t_conv_layers(x)
        x = self.sigmoid(x)
        return x

class AutoEncoder(nn.Module):
    def __init__(self, in_channels, latent_dims):
        super().__init__()
        self.encoder = Encoder(in_channels, latent_dims)
        self.decoder = Decoder(in_channels, latent_dims)

    def encode(self, x):
        return self.encoder(x)

    def decode(self, x):
        return self.decoder(x)

    def forward(self, x):
        return self.decode(self.encode(x))

def train(model, num_epochs=10, lr=1e-4):
    optimizer = torch.optim.AdamW(model.parameters(), lr=lr,
                                  eps=1e-5)
    model.train()
    losses = []
    for _ in (process := trange(num_epochs, desc="Training")):
        for _, batch in (
            inner := tqdm(
                enumerate(train_dataloader), total=len(train_dataloader)
            )
        ):
            batch = batch.to(device)
            preds = model(batch)
            loss = F.mse_loss(preds, batch)
            inner.set_postfix(loss=f"{loss.cpu().item():.3f}")
            losses.append(loss.item())
            loss.backward()
            optimizer.step()
            optimizer.zero_grad()
        process.set_postfix(loss=f"{loss.cpu().item():.3f}", lr=f"{lr:.0e}")
    return losses

ae_model = AutoEncoder(in_channels=1, latent_dims=2)
ae_model.to(device)
losses = train(ae_model)

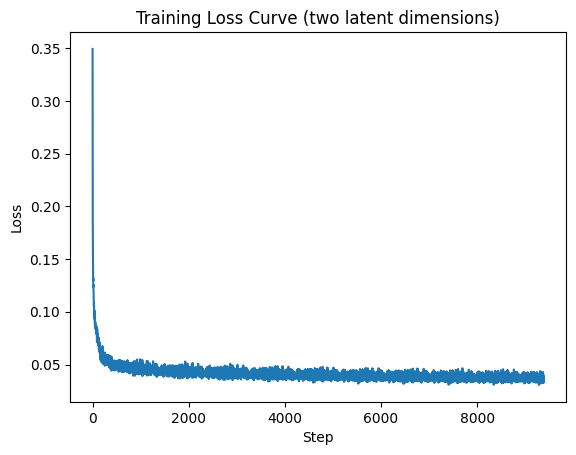

plt.plot(losses)
plt.xlabel("Step")
plt.ylabel("Loss")
plt.title("Training Loss Curve (two latent dimensions)")
plt.show()

Training: 0%| | 0/10 [00:00<?, ?it/s]

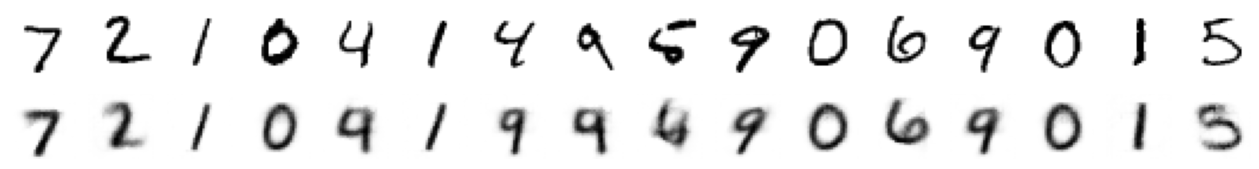

ae_model.eval()
with torch.inference_mode():
    eval_batch = next(iter(eval_dataloader))
    predicted = ae_model(eval_batch.to(device)).cpu()

batch_vs_preds = torch.cat((eval_batch, predicted))
show_images(batch_vs_preds, imsize=1, nrows=2)

images_labels_dataloader = DataLoader(mnist["test"],
    batch_size=512)

import pandas as pd

df = pd.DataFrame(
    {
        "x": [],
        "y": [],
        "label": [],
    }
)

for batch in tqdm(
    iter(images_labels_dataloader),
    total=len(images_labels_dataloader)
):
    encoded = ae_model.encode(batch["image"].to(device)).cpu()
    new_items = {
        "x": [t.item() for t in encoded[:, 0]],
        "y": [t.item() for t in encoded[:, 1]],
        "label": batch["label"],
    }
    df = pd.concat([df, pd.DataFrame(new_items)],
        ignore_index=True)

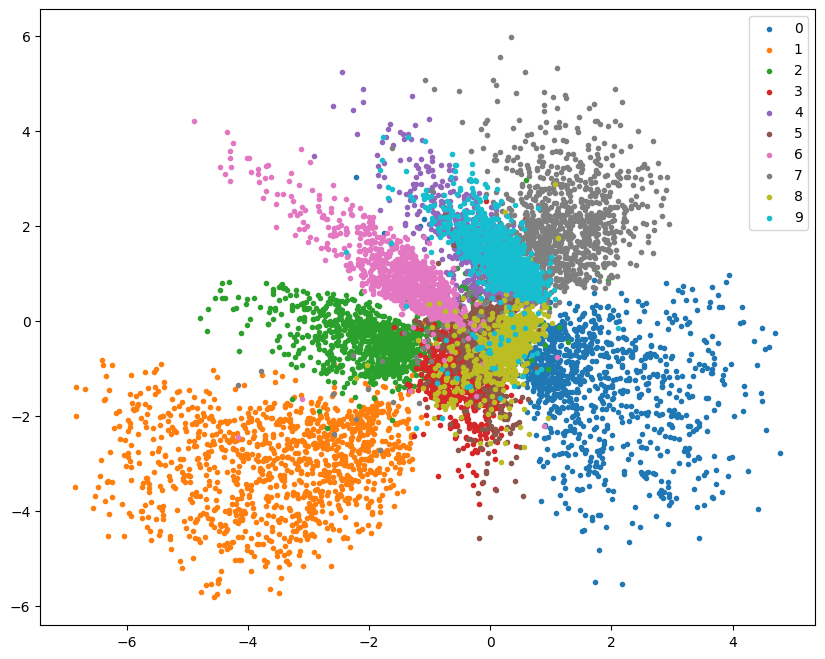

plt.figure(figsize=(10, 8))
for label in range(10):
    points = df[df["label"] == label]
    plt.scatter(points["x"], points["y"], label=label, marker=".")
plt.legend();

0%| | 0/20 [00:00<?, ?it/s]

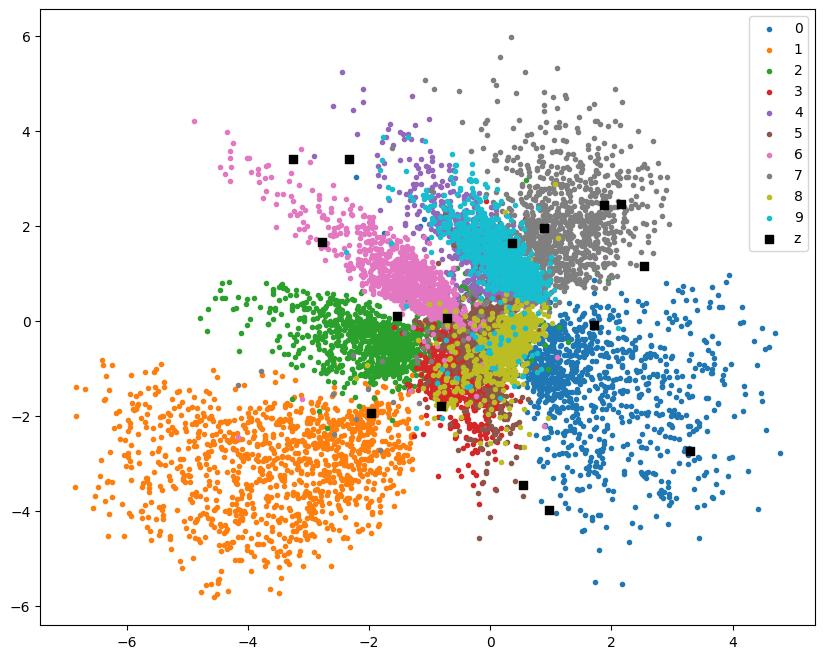

N = 16
z = torch.rand((N, 2)) * 8 - 4

plt.figure(figsize=(10, 8))

for label in range(10):
    points = df[df["label"] == label]
    plt.scatter(points["x"], points["y"], label=label, marker=".")
plt.scatter(z[:, 0], z[:, 1], label="z", marker="s", color="black")
plt.legend();

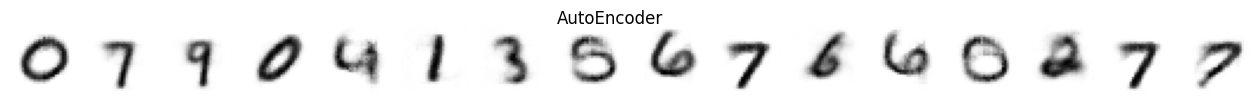

ae_decoded = ae_model.decode(z.to(device))
show_images(ae_decoded.cpu(), imsize=1, nrows=1, suptitle="AutoEncoder")

2 | Variational AutoEncoders

class VAEEncoeder(nn.Module):
    def __init__(self, in_channels, latent_dims):
        super().__init__()
        self.conv_layers = nn.Sequential(
            conv_block(in_channels, 128),
            conv_block(128, 256),
            conv_block(256, 512),
            conv_block(512, 1024),
        )
        self.mu = nn.Linear(1024, latent_dims)
        self.logvar = nn.Linear(1024, latent_dims)

    def forward(self, x):
        bs = x.shape[0]
        x = self.conv_layers(x)
        x = x.reshape(bs, -1)
        mu = self.mu(x)
        logvar = self.logvar(x)
        return (mu, logvar)


class VAE(nn.Module):
    def __init__(self, in_channels, latent_dims):
        super().__init__()
        self.encoder = VAEEncoeder(in_channels, latent_dims)
        self.decoder = Decoder(in_channels, latent_dims)

    def encode(self, x):
        return self.encoder(x)

    def decode(self, z):
        return self.decoder(z)

    def forward(self, x):
        mu, logvar = self.encode(x)
        std = torch.exp(0.5 * logvar)
        z = self.sample(mu, std)
        reconstructed = self.decode(z)
        return reconstructed, mu, logvar

    def sample(self, mu, std):
        eps = torch.randn_like(std)
        return mu + eps * std

def vae_loss(batch, reconstructed, mu, logvar):
    bs = batch.shape[0]
    reconstruction_loss = F.mse_loss(
        reconstructed.reshape(bs, -1),
        batch.reshape(bs, -1),
        reduction="none",
    ).sum(dim=-1)

    kl_loss = -0.5 * torch.sum(1+logvar-mu.pow(2)-logvar.exp(), dim=-1)
    loss = (reconstruction_loss+kl_loss).mean(dim=0)
    return (loss, reconstruction_loss, kl_loss)

def train_vae(model, num_epochs=10, lr=1e-4):
    model = model.to(device)
    losses = {
        "loss": [],
        "reconstruction_loss": [],
        "kl_loss": [],
    }
    model.train()
    optimizer = torch.optim.AdamW(model.parameters(), lr=lr,
        eps=1e-5)
    for _ in (progress := trange(num_epochs, desc="Training")):
        for _, batch in (
            inner := tqdm(
                enumerate(train_dataloader),
                total=len(train_dataloader)
            )
        ):
            batch = batch.to(device)
            reconstructed, mu, logvar = model(batch)
            loss, reconstruction_loss, kl_loss = vae_loss(
                batch, reconstructed, mu, logvar
            )
            inner.set_postfix(loss=f"{loss.cpu().item():.3f}")
            losses["loss"].append(loss.item())
            losses["reconstruction_loss"].append(
                reconstruction_loss.mean().item()
            )
            losses["kl_loss"].append(kl_loss.mean().item())
            optimizer.zero_grad()
            loss.backward()
            optimizer.step()
        process.set_postfix(loss=f"{loss.cpu().item():.3f}", lr=f"{lr:.0e}")
    return losses

vae_model = VAE(in_channels=1, latent_dims=2)
losses = train_vae(vae_model, num_epochs=10, lr=1e-4)

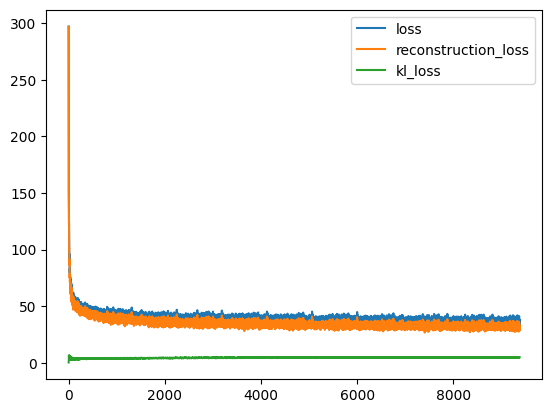

for k,v in losses.items():
    plt.plot(v, label=k)
plt.legend();

Training: 0%| | 0/10 [00:00<?, ?it/s]

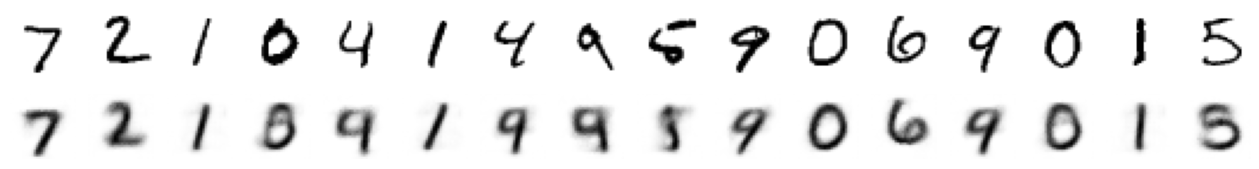

vae_model.eval()
with torch.inference_mode():
    eval_batch = next(iter(eval_dataloader))
    predicted, mu, logvar = (v.cpu() for v in \
        vae_model(eval_batch.to(device)))
batch_vs_preds = torch.cat((eval_batch, predicted))
show_images(batch_vs_preds, imsize=1, nrows=2)

df = pd.DataFrame(
    {
        "x": [],
        "y": [],
        "label": [],
    }
)

for batch in tqdm(
    iter(images_labels_dataloader), total=len(images_labels_dataloader)
):
    mu, _ = vae_model.encode(batch["image"].to(device))
    mu = mu.to("cpu")
    new_items = {
        "x": [t.item() for t in mu[:, 0]],
        "y": [t.item() for t in mu[:, 1]],
        "label": batch["label"],
    }
    df = pd.concat([df, pd.DataFrame(new_items)], ignore_index=True)

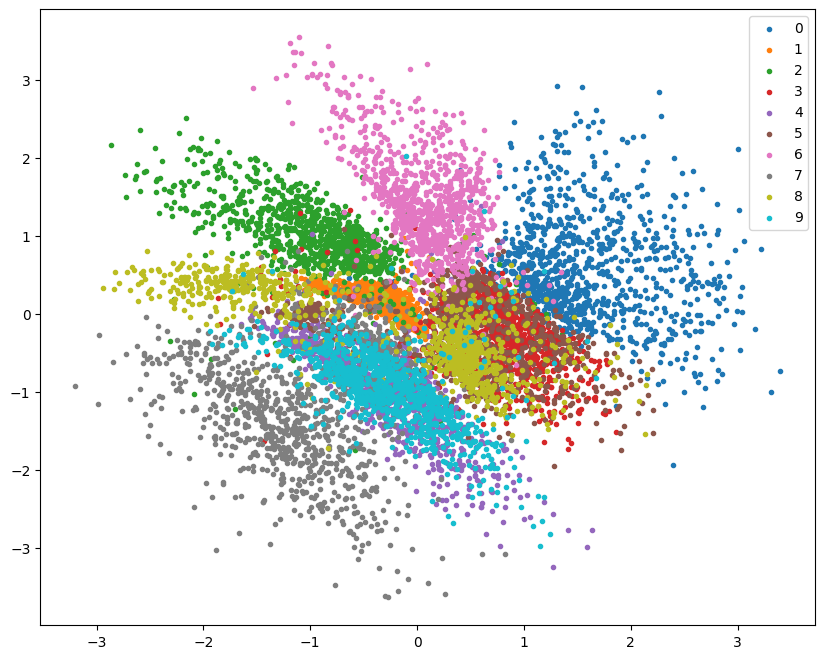

plt.figure(figsize=(10, 8))
for label in range(10):
    points = df[df["label"] == label]
    plt.scatter(points["x"], points["y"], label=label, marker=".")
plt.legend();

z = torch.normal(0, 1, size=(10, 2))
ae_decoded = ae_model.decode(z.to(device))
vae_decoded = vae_model.decode(z.to(device))

show_images(ae_decoded.cpu(), imsize=1, nrows=1)
show_images(vae_decoded.cpu(), imsize=1, nrows=1)

import numpy as np

with torch.inference_mode():
    inputs = []
    for y in np.linspace(-2, 2, 10):
        inputs.append([-0.8, y])
    z = torch.tensor(inputs, dtype=torch.float32).to(device)
    decoded = vae_model.decode(z)
show_images(decoded.cpu(), imsize=1, nrows=1)

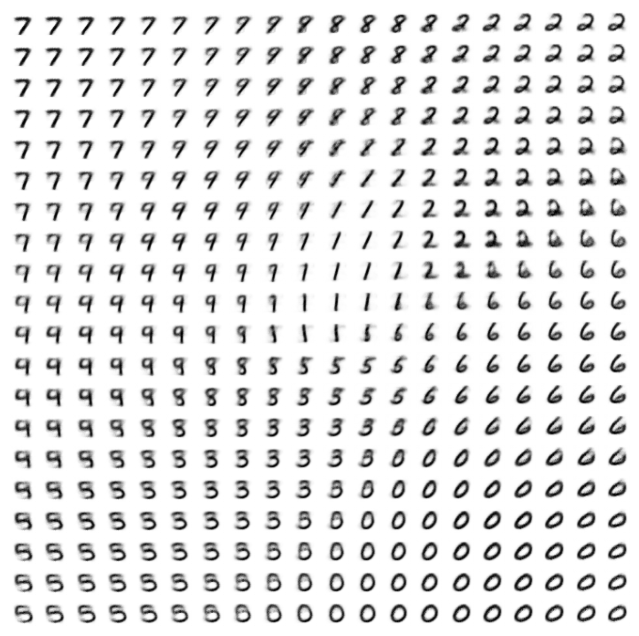

inputs = []
for x in np.linspace(-2, 2, 20):
    for y in np.linspace(-2, 2, 20):
        inputs.append([x, y])

z = torch.tensor(inputs, dtype=torch.float32).to(device)
decoded = vae_model.to(device).decode(z)

show_images(decoded.cpu(), imsize=0.4, nrows=20)
